Features

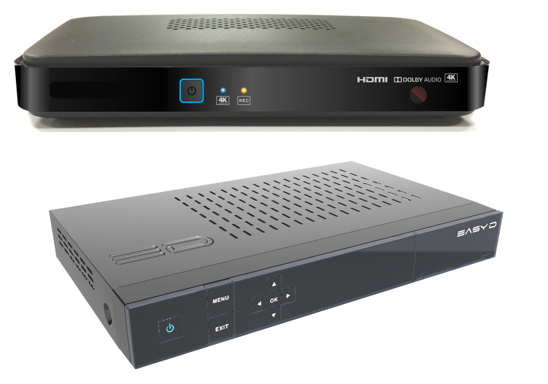

4K DVR STB
4 x Full Band Capture AMC Tuner/Demod
Supports 10/100M Base-T Ethernet
802.11n 2×2 2.4G/5GWi-Fi
Supports MPEG2/4 part 2, HEVC, H.264/AVC, VC-1, VP9 video decoding
Supports MPEG-1, MPEG-2, Dolby, Dolby MS11 audio decoding
Specifications
System Configuration
| CPU | 14K+ DMIPS |
| SPI Flash | 4 MB |
| NAND Flash | 256MB |
| LPDDR4 | 1GB |
| SATA HDD | 500GB |
Connectivity
| RF IN | 2 x F-Type Female |
| HDMI | 1 x HDMI 2.0 |
| AV Output | 3 x RCA (for CVBS, Audio L/R) |
| Ethernet | 1 x RJ45 |
| USB | 1 x USB2.0 Type A |
| DC input | 1 x DC Jack with LED |
| Smartcard | 1 x SIM Card sold |
Front IO
| LED | 1 x LED |
| Button | 1 x Button (Power) front
1 x Button (Reset) Side |
| IR receiver | 1 x IR sensor |
External power Adaptor
| AC input | 100~240V AC, 50/60Hz |
| DC Output | 12V DC, 1.25A |
| Efficiency | 80% Min. @ Full Load |
